Floating ‘artificial leaves’ ride the wave of clean fuel production

“Artificial leaves could substantially lower the cost of sustainable fuel production”

Researchers have developed floating ‘artificial leaves’ that generate clean fuels from sunlight and water, and could eventually operate on a large scale at sea.

The researchers, from the University of Cambridge, designed ultra-thin, flexible devices, which take their inspiration from photosynthesis – the process by which plants convert sunlight into food. Since the low-cost, autonomous devices are light enough to float, they could be used to generate a sustainable alternative to petrol without taking up space on land.

Outdoor tests of the lightweight leaves on the River Cam – near iconic Cambridge sites including the Bridge of Sighs at St John’s College, the Wren Library at Trinity College and King’s College Chapel – showed that they can convert sunlight into fuels as efficiently as plant leaves.

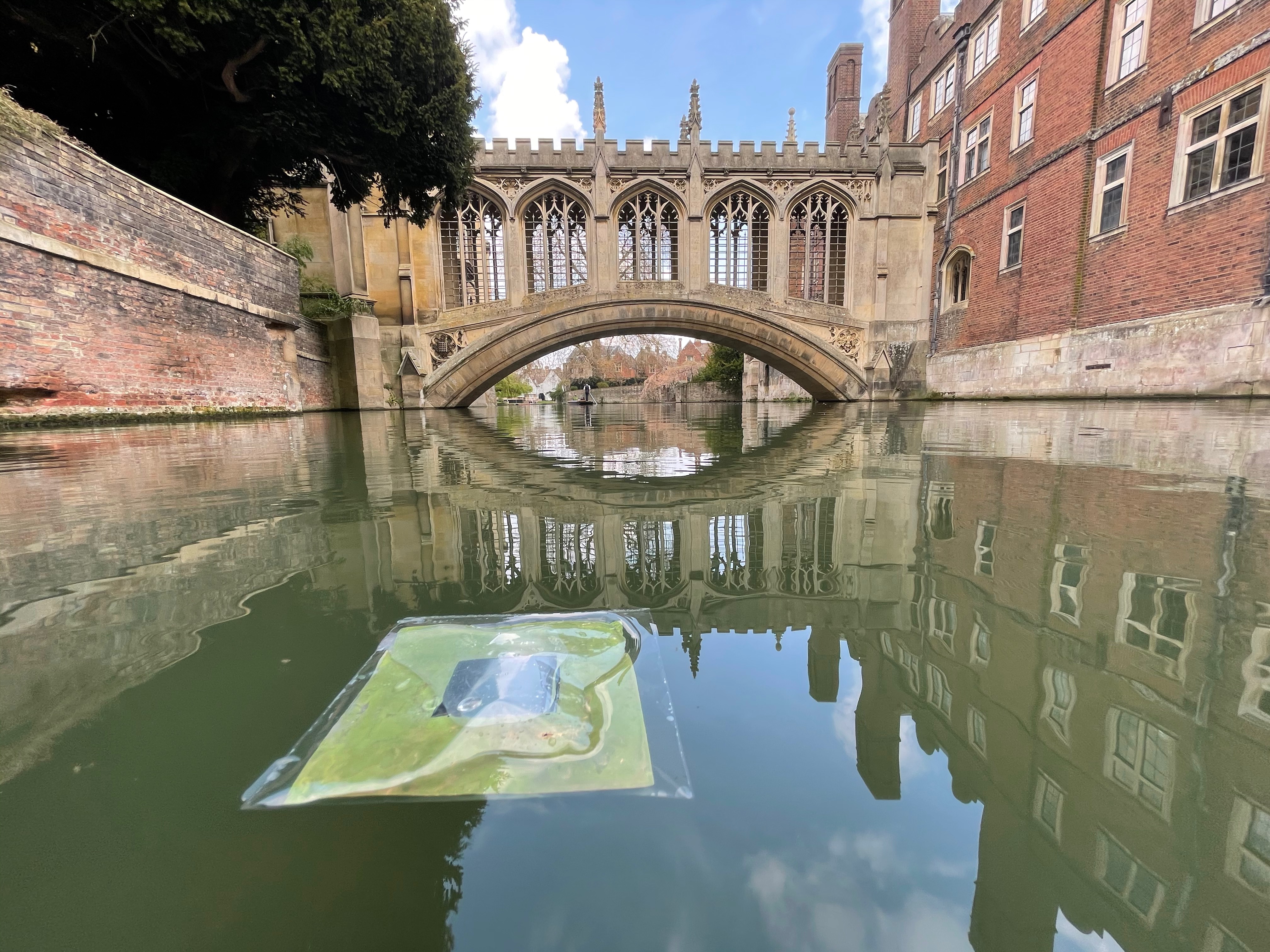

Artificial leaf in front of the Bridge of Sighs
A floating artificial leaf being tested on the River Cam in front of the Bridge of Sighs at St John's College. Top photo: The thin perovskite-BIVO artificial leaf set up to show how the leaves would work on a large scale.

This is the first time that clean fuel has been generated on water, and if scaled up, the artificial leaves could be used on polluted waterways, in ports or even at sea, and could help reduce the global shipping industry’s reliance on fossil fuels. The results are reported in the journal Nature.

While renewable energy technologies, such as wind and solar, have become significantly cheaper and more available in recent years, for industries such as shipping, decarbonisation is a much taller order. Around 80% of global trade is transported by cargo vessels powered by fossil fuels, yet the sector has received remarkably little attention in discussions around the climate crisis.

For several years, Professor Erwin Reisner’s research group in Cambridge has been working to address this problem by developing sustainable solutions to petrol which are based on the principles of photosynthesis. In 2019, they developed an artificial leaf, which makes syngas – a key intermediate in the production of many chemicals and pharmaceuticals – from sunlight, carbon dioxide and water.

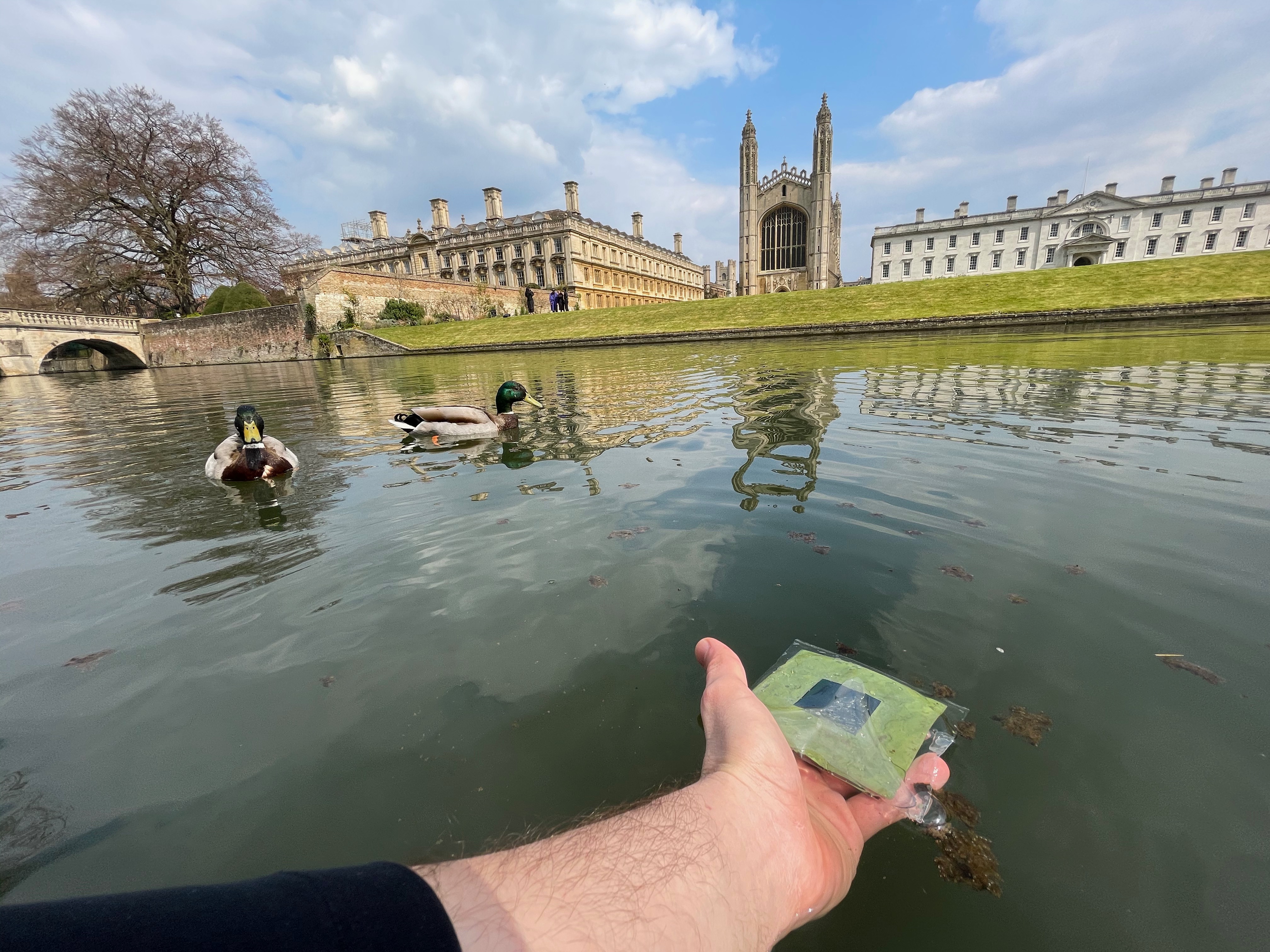

The leaf in front of King's College Chapel
The artificial leaf pictured in front of King's College Chapel.

The earlier prototype generated fuel by combining two light absorbers with suitable catalysts. However, it incorporated thick glass substrates and moisture protective coatings, which made the device bulky.

“Artificial leaves could substantially lower the cost of sustainable fuel production, but since they’re both heavy and fragile, they’re difficult to produce at scale and transport,” said Dr Virgil Andrei from Cambridge’s Yusuf Hamied Department of Chemistry, who is a Research Fellow at St John’s College and the paper’s co-lead author.

“We wanted to see how far we can trim down the materials these devices use, while not affecting their performance,” said Professor Reisner, a St John’s Fellow, who led the research. “If we can trim the materials down far enough that they’re light enough to float, then it opens up whole new ways that these artificial leaves could be used.”

“You could roll up these devices and put them almost anywhere, in almost any country, which would also help with energy security”

Dr Virgil Andrei with one of the leaf devices
Dr Virgil Andrei with one of the leaf devices.

For the new version of the artificial leaf, the researchers took their inspiration from the electronics industry, where miniaturisation techniques have led to the creation of smartphones and flexible displays, revolutionising the field.

The challenge for the Cambridge researchers was how to deposit light absorbers onto lightweight substrates and protect them against water infiltration. To overcome these challenges, the team chose thin-film metal oxides and materials known as perovskites, which can be coated onto flexible plastic and metal foils. The devices were covered with micrometre thin, water-repellent carbon-based layers that prevented moisture degradation. They ended up with a device that not only works, but also looks like a real leaf.

“This study demonstrates that artificial leaves are compatible with modern fabrication techniques, representing an early step towards the automation and up-scaling of solar fuel production,” said Dr Andrei. “These leaves combine the advantages of most solar fuel technologies, as they achieve the low weight of powder suspensions and the high performance of wired systems.”

Tests of the new artificial leaves showed that they can split water into hydrogen and oxygen, or reduce CO2 to syngas. While additional improvements will need to be made before they are ready for commercial applications, the researchers say this development opens whole new avenues in their work.

“Solar farms have become popular for electricity production; we envision similar farms for fuel synthesis,” said Dr Andrei. “These could supply coastal settlements, remote islands, cover industrial ponds, or avoid water evaporation from irrigation canals.”

“Many renewable energy technologies, including solar fuel technologies, can take up large amounts of space on land, so moving production to open water would mean that clean energy and land use aren’t competing with one another,” said Professor Reisner. “In theory, you could roll up these devices and put them almost anywhere, in almost any country, which would also help with energy security.”

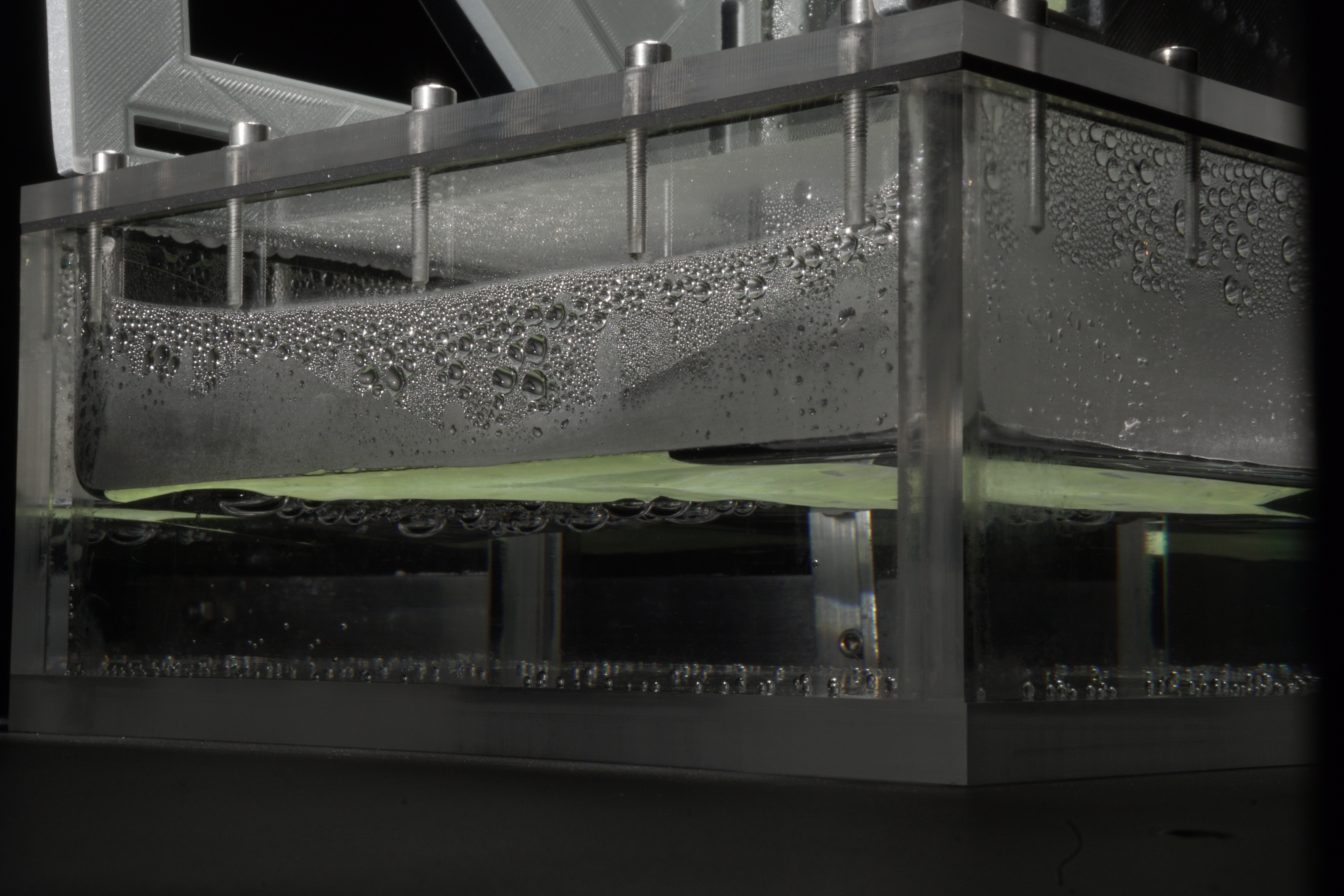

Device floating
The lightweight artificial leaf under operation. The leaf starts to float as gas bubbles emerge during light irradiation.

The research was supported in part by the European Research Council, the Cambridge Trust, the Winton Programme for the Physics of Sustainability, the Royal Academy of Engineering, and the Engineering and Physical Sciences Research Council (EPSRC), part of UK Research and Innovation (UKRI). Among co-authors of the paper were Professor Sir Richard Friend and Professor Hannah Joyce, both also Fellows of St John’s, and St John’s alumna Dr Katarzyna Sokół.

Professor Reisner said: “A huge amount of collaboration went into this research within Cambridge but within St John’s College as well.”


Virgil Andrei et al. ‘Floating perovskite-BiVO4 devices for scalable solar fuel production.’ Nature (2022). DOI: 10.1038/s41586-022-04978-6.

Published 17/8/2022
